Seismic Bars

Elevate your audio experience with Townshend Audio’s Seismic Isolation Bars, expertly designed to decouple your speakers or subwoofers from disruptive floor vibrations.

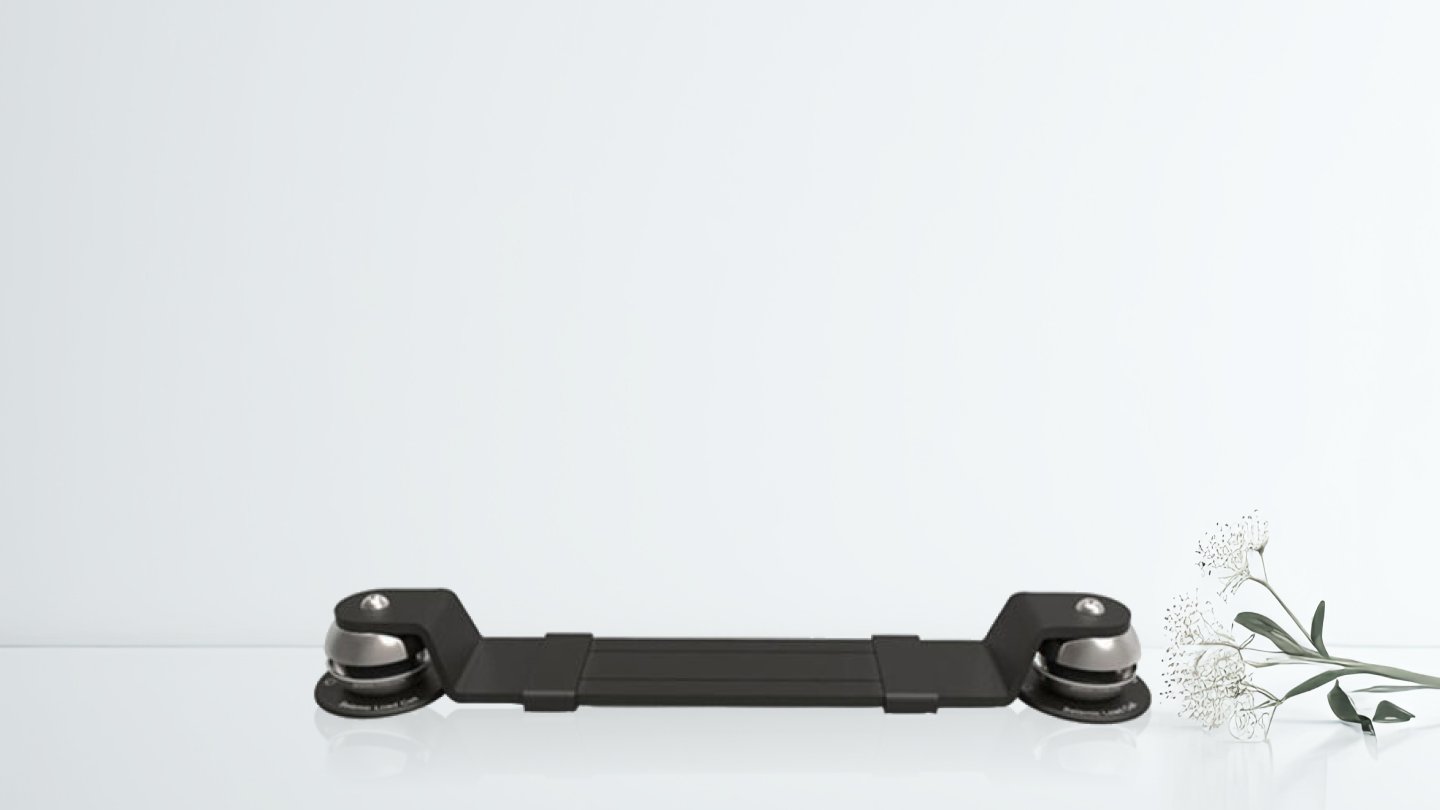

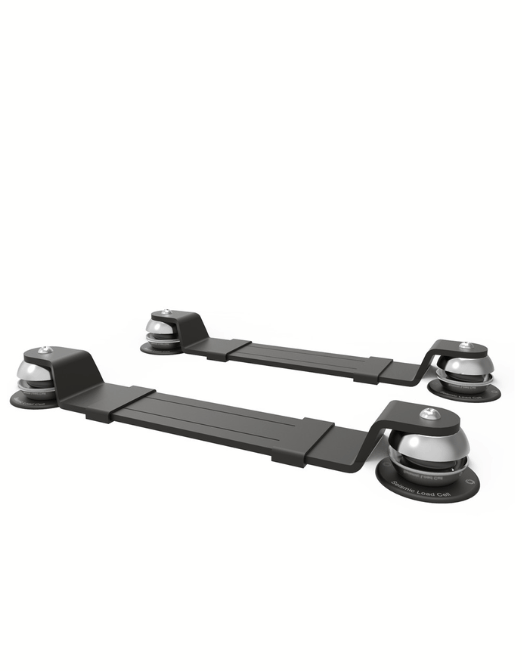

Crafted with precision, each bar features a robust steel cross-piece and advanced Seismic Load Cells™, allowing your speakers to “float” at frequencies above 3Hz for unparalleled sound clarity. Experience wider soundstages, deeper bass, and reduced distortion, all while minimizing noise transmission to keep your neighbors happy. Easy to install and available in multiple weight capacities,

Seismic Bars transform your listening environment, delivering music as it was meant to be heard. Discover the Seismic Effect today

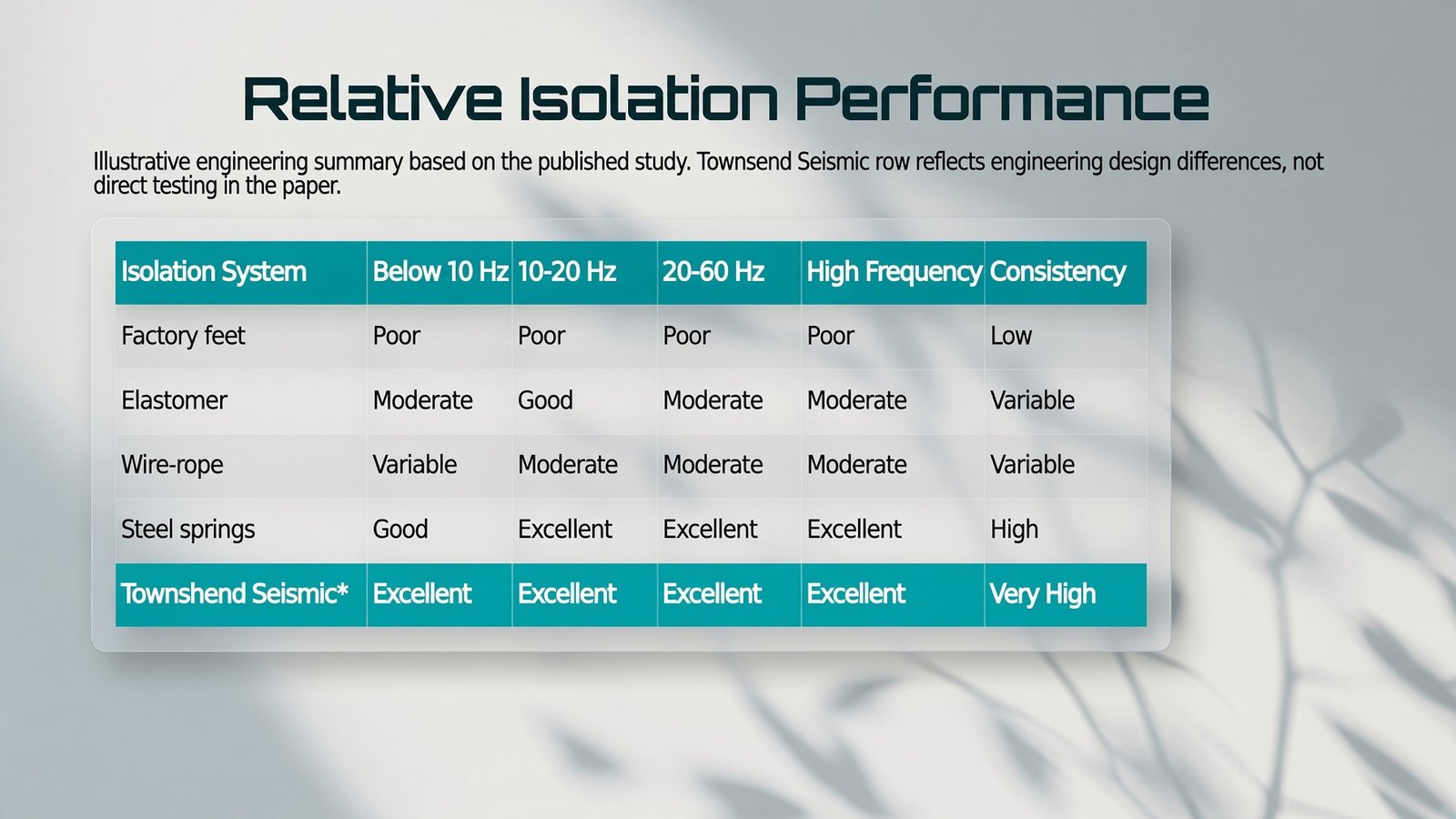

Comparison chart illustrating the relative vibration isolation performance of factory feet, elastomer isolators, wire-rope isolators, steel springs and Townshend Seismic air-damped spring isolation across different frequency ranges.

Key Benefits You’ll Love

Superior Vibration Isolation

Seismic Load Cells™ isolate speakers above 3Hz, eliminating floor vibrations for clearer sound. Enhances transparency and soundstage depth.

Enhanced Bass and Dynamics

Tightens bass and improves dynamic range, delivering powerful, natural audio. Users report “strong, powerful bass

Versatile Compatibility

The copper conductors undergo Enhanced Isolda Deep Cryogenic Treatment, which enhances transparency and neutrality, outperforming other materials in clarity and detail. Improved Soundstage and Detail: Users report a larger soundstage, precise instrument placement, and enhanced detail, with the ability to discern subtle differences in recordings, such as identifying distinct recording studios. The cable excels in bass extension and dynamic range.

Holographic Soundstage

Creates a stable, immersive soundstage with precise imaging. “Voices and instruments locked in a holographic soundstage

Sizing up

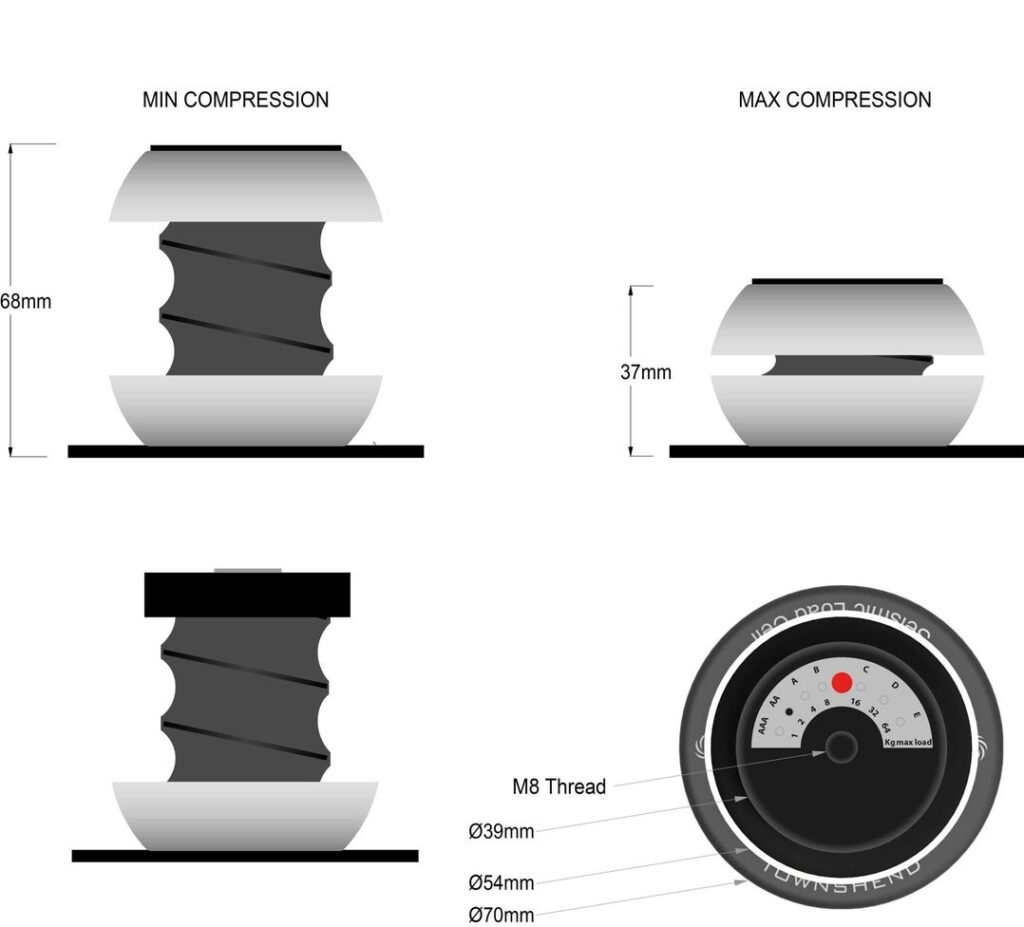

The weight of your speakers is crucial in determining the right load cells for perfect isolation within the audio waveband. Our carefully calibrated Loadcells ensure the ideal spring-mass load, allowing your speakers to “float” and achieve comprehensive isolation from external vibrations.

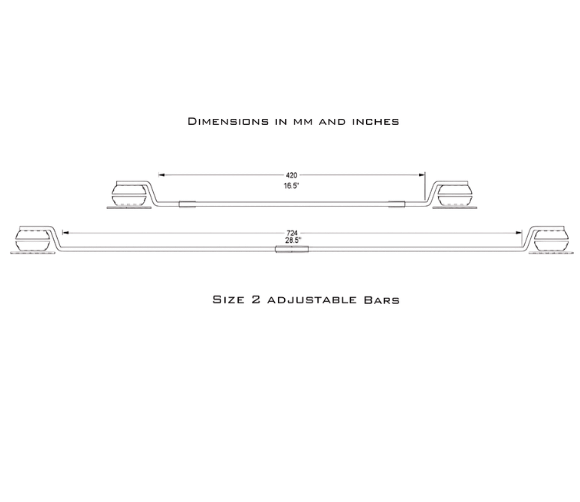

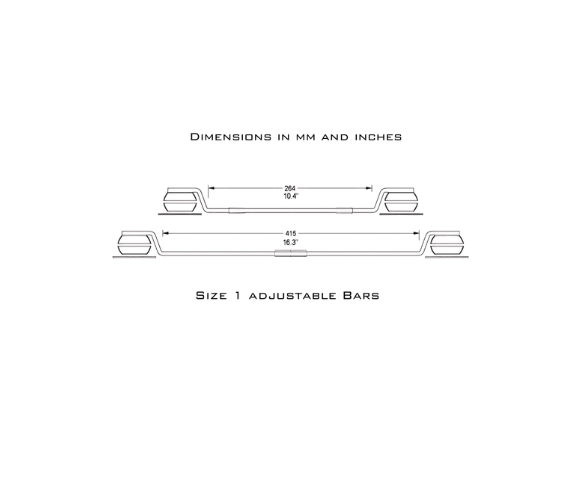

Once this balance is achieved, you’ll select a platform that fits your speakers as shown in the diagram. If there is a slight overhang at the front or back, this may be acceptable. For speakers that don’t fit any standard platforms, we offer a bespoke service to create a custom stand that perfectly suits your setup.

How Audio Isolation Changes with Frequency

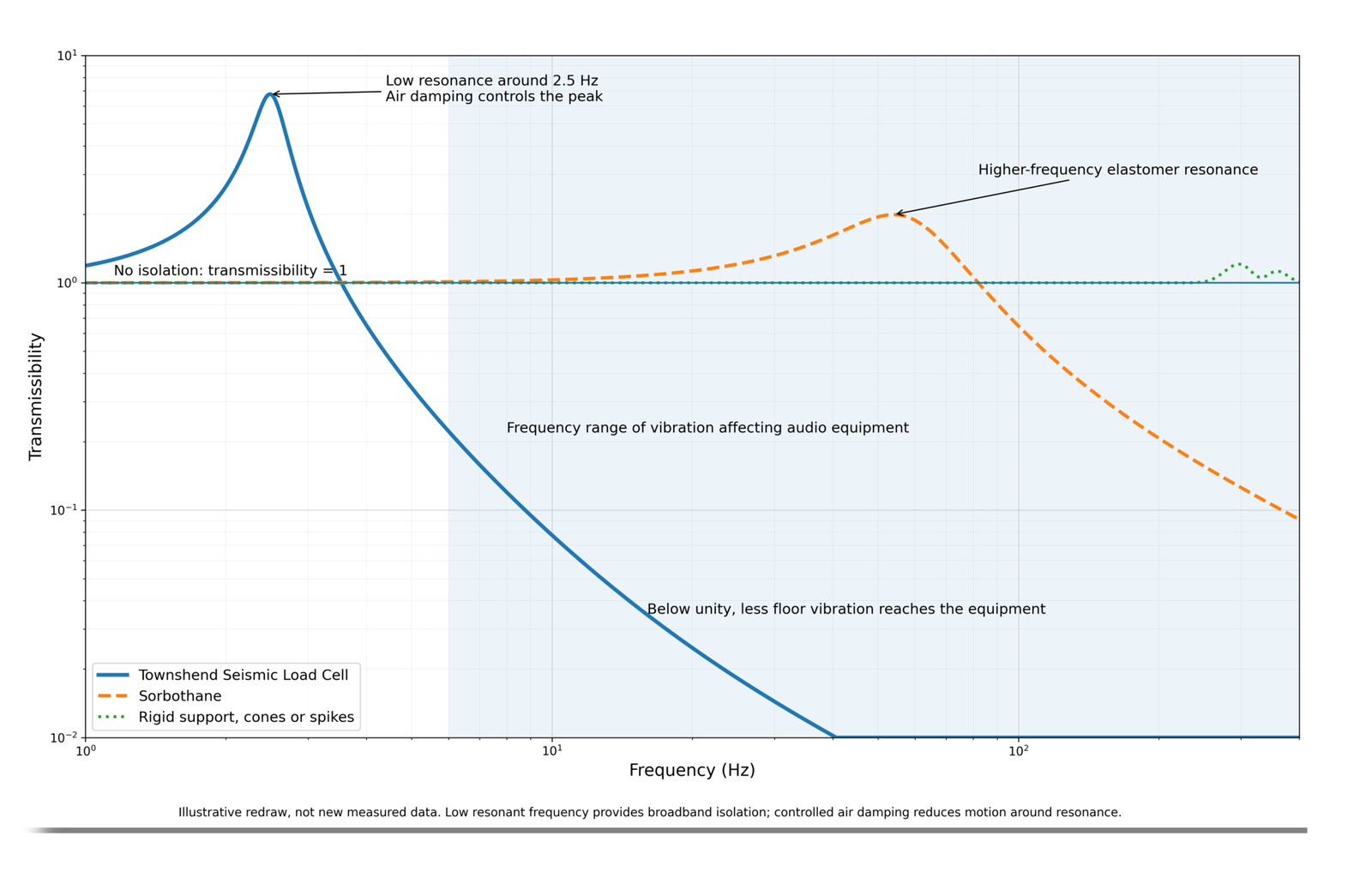

Logarithmic graph comparing the transmissibility of Townshend Seismic Load Cells, Sorbothane and rigid supports across frequency, showing broadband isolation from the Townshend air-damped spring system.

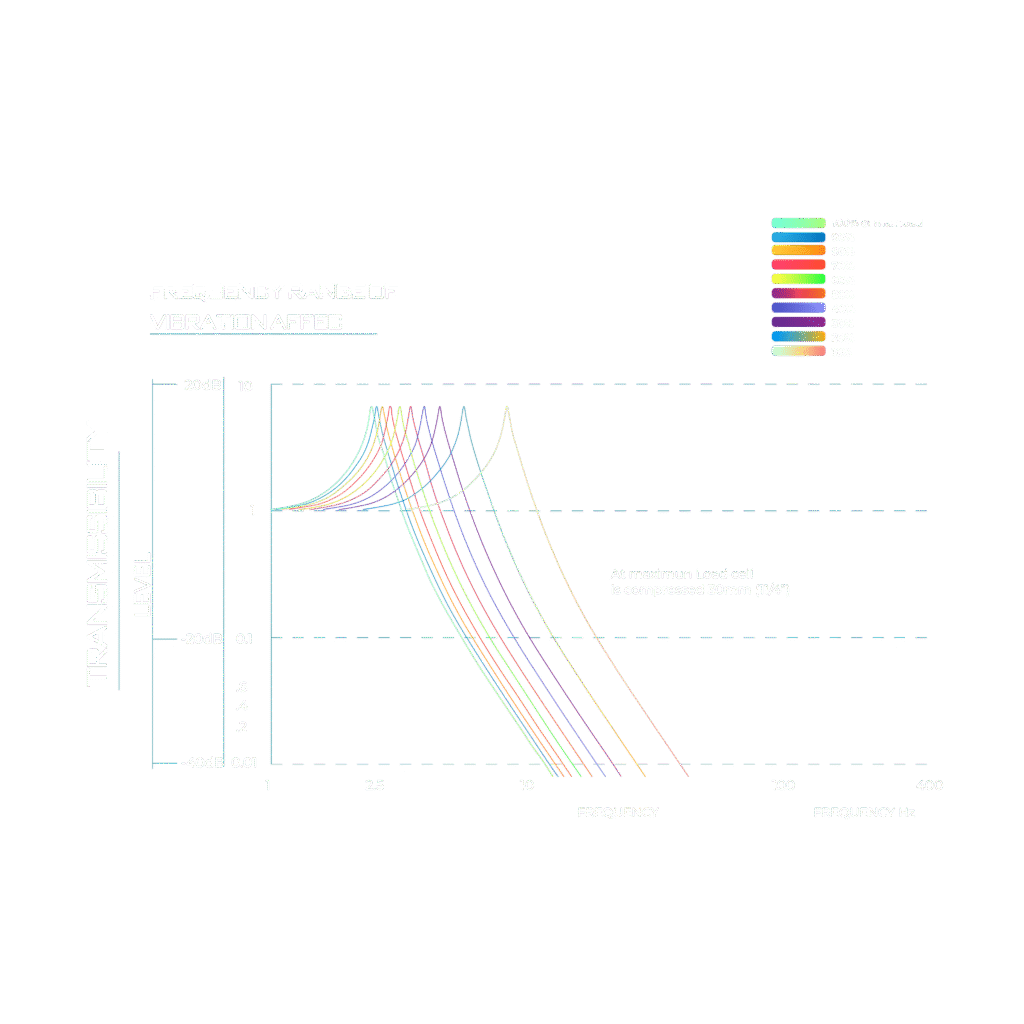

Choose your Loadcell strength from the chart below

What do our customers say about us?

Townshend Seismic Speaker Bars produce a result that goes way beyond what you might expect from ‘speakers on springs’. To get an improvement in absolute resolution, precision of timing and solidity of stereo image from something so apparently simple is extraordinary. These things really do change the game, move the goalposts, and revolutionise the way we should think about speaker support. This is not an accessory… it’s an essential.

Jason Kennedy- HiFi+

I just installed the bars [under the Amphion Two 18’s]. They sound amazing. The effect on the clarity across the range, soundstage, and bass cleanup has to be heard to be believed.

From the moment I put the seismic bars in place the whole sound has been transformed. Not just the bass, which is strong and powerful, but a distinct improvement right the way through the frequency range. Voices and instruments now have a clearer and more natural presentation, all locked in place in a very stable, almost holographic, sound stage. The change in the mid and high frequencies was far greater than expected.

What I was hearing was a more natural rendition of the body of his guitar… a continuous lack of bloat, a cleaner and more defined upper bass with far greater weighted extension was apparent.

Dan Worth, Hifi Pig

The system revealed more nuance, subtlety, and realism across a whole range of music with the speakers isolated on the Seismic Speaker Bars. I really like the way you can hear further into each element of each piece of music.

HiFi +

In my setup, yes all positive, no vibration through the floor.

What Hi-Fi? Forum

Check out Those Videos

How to isolate speakers from Ground Borne vibration

Seismic Isolation Demo at Holland, Featuring Stuart from HiFi Pig

Cheshire Audio - Tweek - Seiesmic Isolation Bars

EXPLORE INSIGHTS AND EXPERTISE

08/02/2026

Finally, Hard Numbers Confirm What We’ve Known for Decades: Full-Band Vibration Isolation Matters

06/06/2026

Floating Rack: Seismic Isolation for every Component in one Hit!

05/29/2026

Super-tweeters debunked? Not so fast

03/18/2026

Mike’s Music Room – La Quinta, California

03/17/2026

BAYZ Audio Courante 2.0 on Podiums

03/11/2026

Jonathan Gorse’s Enthusiastic Review of the Townshend Audio Allegri Reference Preamplifier: A Game-Changer in High-End Audio

10/01/2025

Max Townshend’s Affordable Legend Gets a Modern Makeover

10/01/2025

Unmasking Cable Myths: Time-Domain Truths in Headphonesty’s Latest vs. Max Townshend’s Enduring Wisdom on Speaker Cables

10/01/2025

Seismic Upgrades: Why Townshend Tops Jonathan Gorse’s Analogue Wishlist

10/01/2025

Vintage Vinyl Royalty: Why the Townshend Elite Rock Still Crushes Modern Decks (And How Our Seismic Tech Makes It Unbeatable)

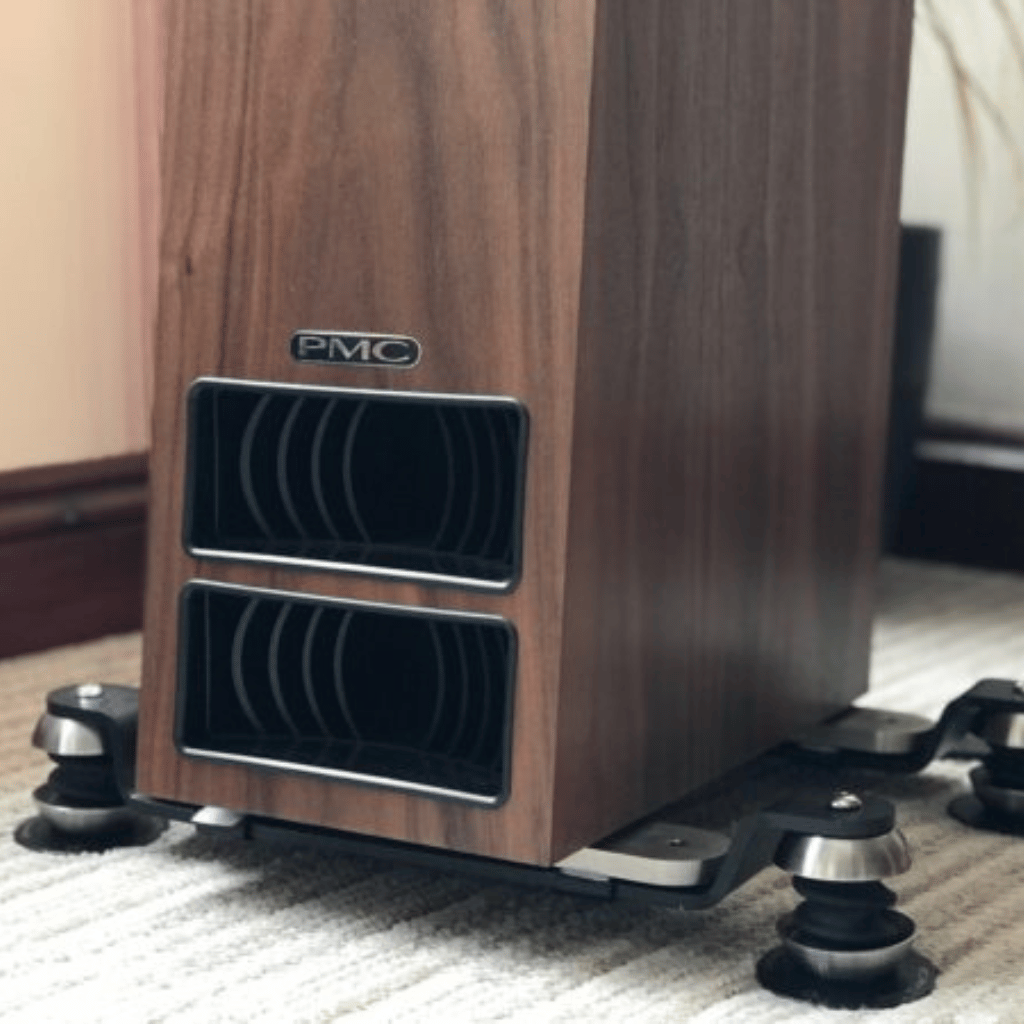

I have recently been trying Seismic Speaker Bars under PMC fact.8 speakers and have been shocked at the benefits that they accrue. The noise floor drops dramatically and the speakers ‘disappear’ from the soundstage. Close your eyes and it’s hard to point at them because the image is so strong, it’s so three dimensional and convincing that it seems unrelated to the position of the speakers. Equally impressive is the way that overhang is reduced and timing precision increased.”

The Seismic Speaker Bars gave a relaxed and controlled top end that flows with more ease and more confidence, whilst retaining the air and transparency I’ve worked so hard to achieve… The lack of injection into the structure of the room and the surrounding building was most noticeable here and less interaction with the framework of the structure equals less interaction back into the speakers.

More Than a Spring: The Air-Damped Advantage

Townshend Seismic isolation is not simply a conventional spring support. Each Load Cell is carefully matched to the weight it carries, so the spring compresses into its correct operating range and achieves the low resonant frequency needed for effective broadband isolation. Around the spring is a flexible rubber air-damping jacket with a precisely controlled air outlet. As the spring moves, air is forced through this opening, dissipating energy and quickly controlling oscillation. This means the system combines the freedom of a soft spring with the stability of a damper, reducing both floor-borne vibration and the prolonged bouncing associated with ordinary undamped springs.

Why Spring Compression Matters

A spring only performs optimally when it is carrying the correct load. If it is too lightly loaded, it remains too stiff and cannot achieve the low resonant frequency needed for effective isolation. If it is overloaded, it has insufficient travel and its performance is compromised. Townshend Seismic Load Cells are individually matched to the weight of the equipment they support, ensuring each spring operates at its optimum compression. This allows the isolator to achieve an exceptionally low resonant frequency, so vibration is progressively attenuated across virtually the entire range of frequencies that affect audio equipment, rather than only at higher frequencies like many conventional isolation materials.

frequently asked questions

What are Townshend Audio Seismic Adjustable Bars, and how do they work?

The Seismic Adjustable Bars are designed to isolate speakers (standmount, floorstanders, or subwoofers) from floor vibrations, preventing unwanted resonance from affecting sound quality. Each bar features two Seismic Load Cells™, which use a spring-mass system with air-resistant damping to “float” speakers above 3Hz, blocking vibrations in all directions (up/down, left/right, back/forth). This results in clearer sound, tighter bass, and a wider soundstage while reducing neighbor disturbances. “The sound improves dramatically, with wider stage width and greater depth.

Are the Seismic Adjustable Bars sonically worse than the Seismic Isolation Podium?

No, the Seismic Adjustable Bars are not sonically inferior to the Podium; both deliver near-identical sonic benefits because they use the same Seismic Load Cell™ technology, the critical component for isolating vibrations above 3Hz. The Podium’s extra mass and constrained-layer damping provide added stability for heavier speakers (>75kg) or complex setups, but the bars achieve comparable clarity, bass definition, and soundstage expansion for smaller to medium speakers. User reviews confirm the bars’ performance rivals the Podium’s, with one noting, “General improvement in clarity” under Martin Logan speakers.

What speakers are compatible with the Seismic Adjustable Bars?

The bars are versatile, supporting speakers from 0.5kg to 75kg, including standmounts, floorstanders, and subwoofers. They are adjustable for speaker widths (264mm–724mm) and available in five weight capacities (A to E). For loads above 30kg or speakers taller than 1m, Townshend recommends Podiums for easier setup and stability, but the bars can handle up to 75kg with care.

How do I install the Seismic Adjustable Bars?

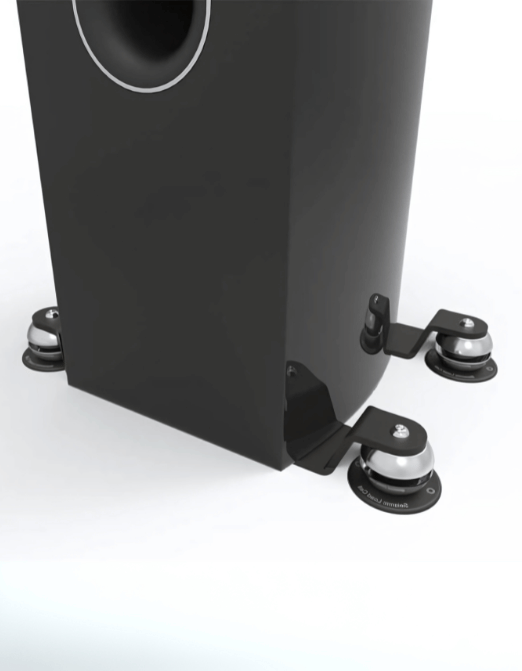

Installation is simple: remove any spikes or cones from your speakers, slip one bar under the front, tilt the speaker forward, and slide the second bar under the rear. Fine-tune the vertical alignment with small adjustments to the Load Cells. Despite the “floating” effect, speakers remain stable and require significant force to topple. No tools are needed, and setup takes minutes.

What sonic improvements can I expect from the Seismic Adjustable Bars?

Users report dramatic enhancements, including:

Transparency: Clearer vocals and instruments with a “holographic” soundstage. “Voices and instruments now have a clearer and natural presentation.”
Dynamics: Tighter, more defined bass without boom. “The bass is strong and powerful… a distinct improvement right through the frequency range.”
Bandwidth: Wider, deeper soundstage with precise imaging. “Separation of instruments much better, clarity, better detail.”
The bars also reduce structure-borne feedback, allowing high-volume listening without disturbing neighbors.

Can the bars be used on any floor type?

Yes, the Seismic Adjustable Bars are suitable for wood, tile, or carpeted floors. Their adjustable Load Cells compensate for uneven surfaces, ensuring a stable, level setup. Users confirm effectiveness on various floors, including suspended wood and concrete with carpet.

How do the bars compare to traditional spikes or other isolation solutions?

Unlike spikes, which couple speakers to the floor and transmit vibrations, the Seismic Bars decouple speakers using a low-pass mechanical filter, isolating vibrations above 3Hz. This outperforms partial isolation solutions like Sorbothane or elastomeric pads, which only attenuate above 10–15Hz. “Spikes… rely on the naive notion that rigid coupling and one-way energy transfer are achievable. They are not.” Users report the bars surpass alternatives like Stillpoints or IsoAcoustics Gaia, with one stating, “A worth while improvement over… Stillpoints.

Are there any limitations or considerations for using the bars?

The bars are ideal for speakers up to 30kg for single-handed setup; for heavier speakers (up to 75kg) or those with high centers of gravity, Podiums are recommended for stability. Ensure the correct Load Cell capacity is selected using Townshend’s load cell selection chart to avoid overloading. For uneven weight distribution, stronger Load Cells may be needed.web:6 Some users note a learning curve in aligning speakers to avoid wobble, but this is minor with careful setup. Townshend will be ready to advise you on any unusual speakers and work with you to find the optimum solution.

Why Is Spring Compression Crucial for Townshend Seismic Isolation?

Compressing the springs in our Seismic isolation systems, like the Seismic Podiums and Platforms, is key to achieving vibration-free audio playback. By carefully compressing the springs, we tune the system’s natural frequency to an ultra-low 3Hz, far below typical environmental vibrations like floor thumps or room resonance (10–20Hz). This creates a “floating” effect, where the springs absorb and dissipate disruptive energy, preventing it from reaching your turntable, speakers, or other hi-fi gear. As Jonathan Gorse raved in SoundStage! Ultra about our Seismic Platform, “The second I placed this platform under my GyroDec… I was stunned” at the enhanced precision and bass articulation. Without proper compression, springs would remain too stiff, allowing vibrations to pass through and smear sound with distortion. This principle, rooted in the damping legacy of my Rock turntable, ensures the pristine, holographic audio Townshend is known for.

How does Townshend Seismic Isolation differ from conventional rigid couplers?

Townshend Audio’s mechanical low pass filter exemplifies true decoupling, offering a level of vibration isolation that far surpasses conventional attenuation methods. By effectively isolating components from vibrations down to below 3 Hz, Townshend ensures that high-fidelity audio systems perform at their best, free from the distortions caused by external vibrations.

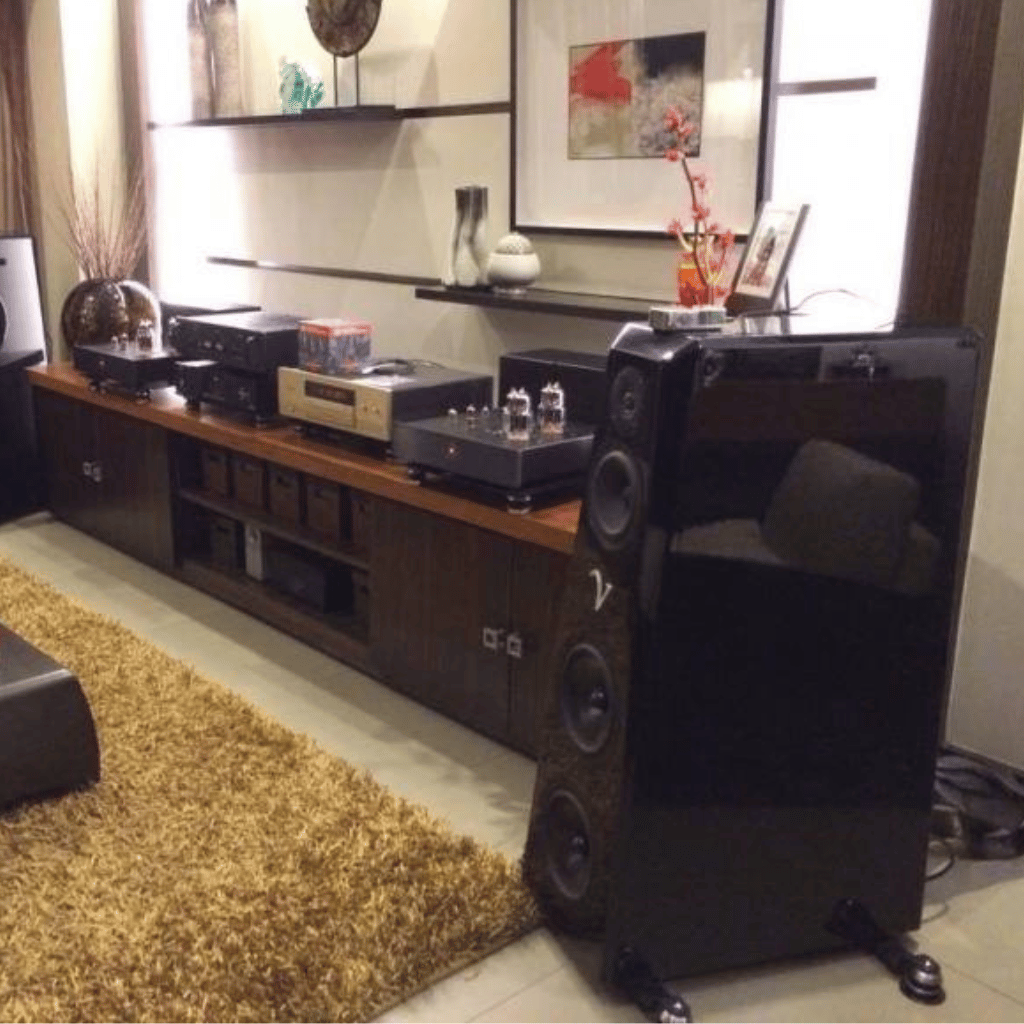

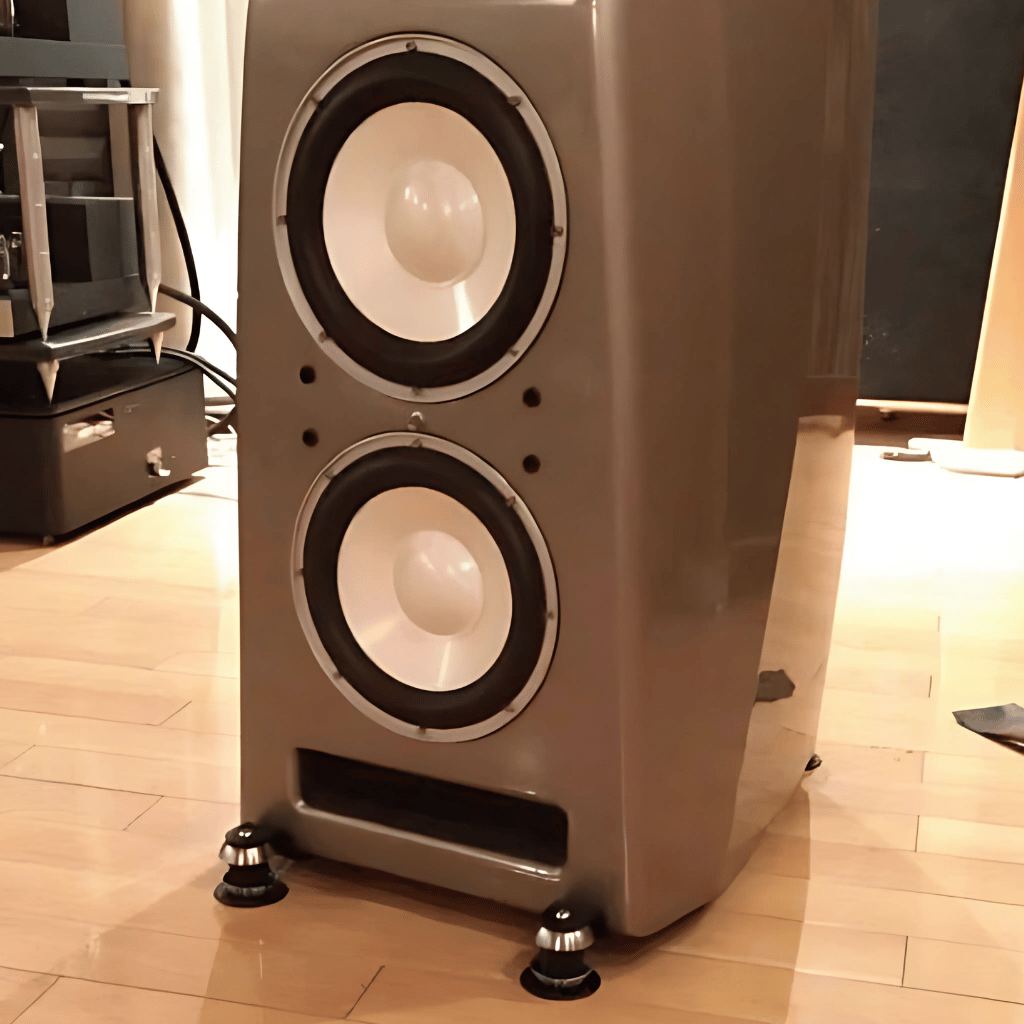

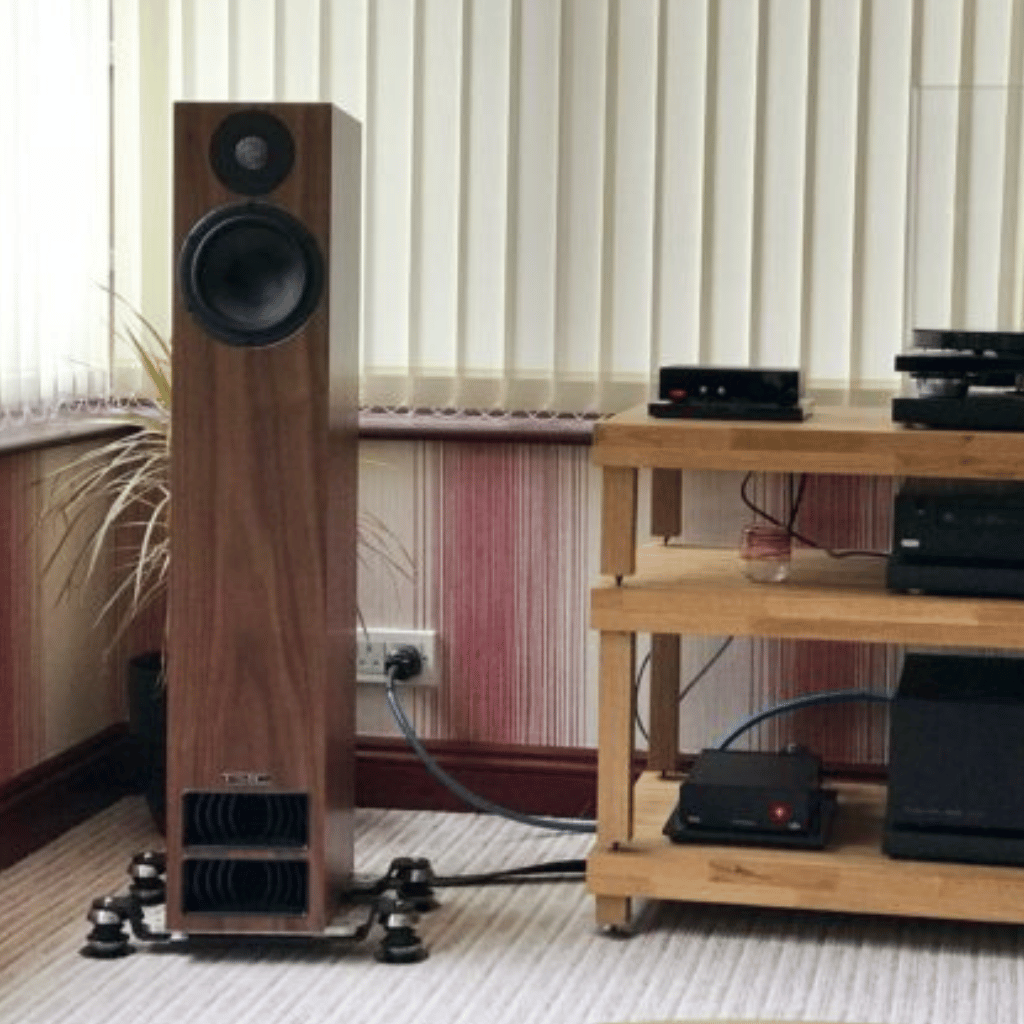

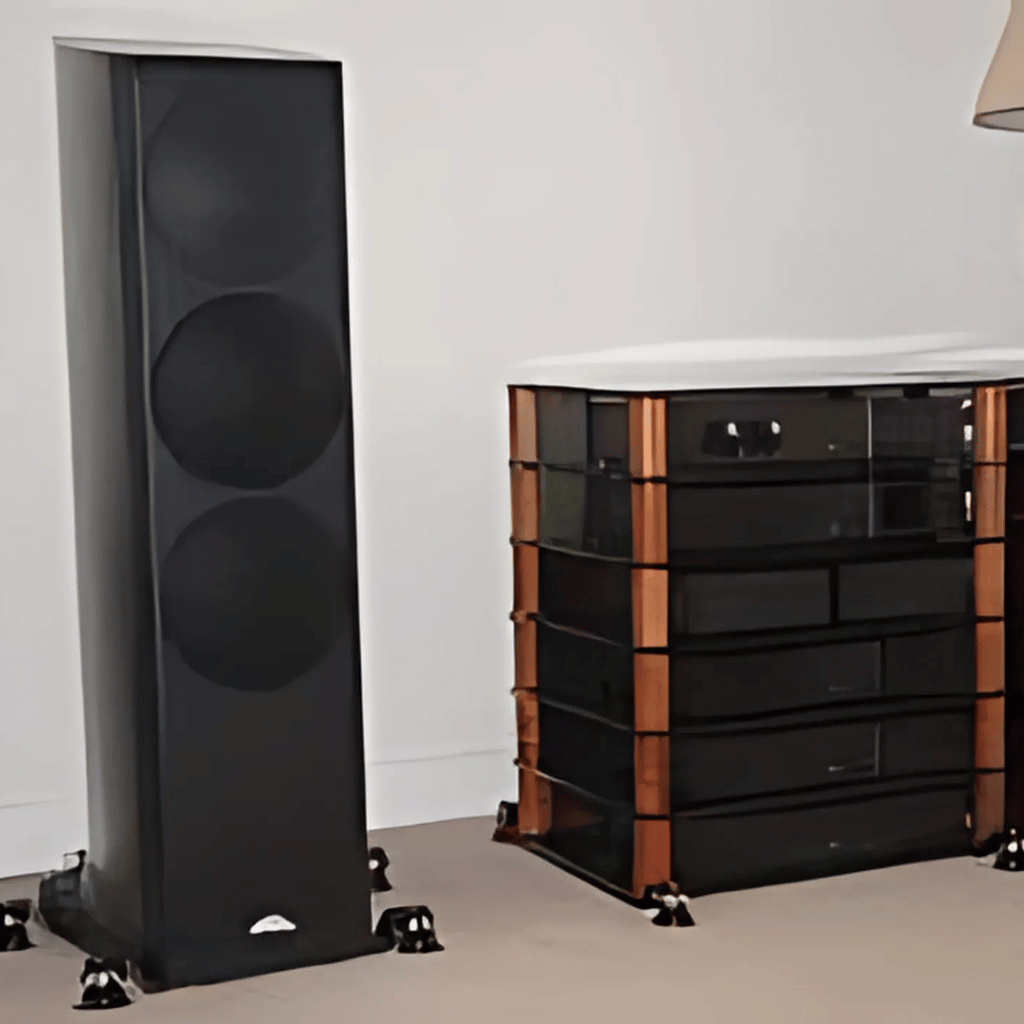

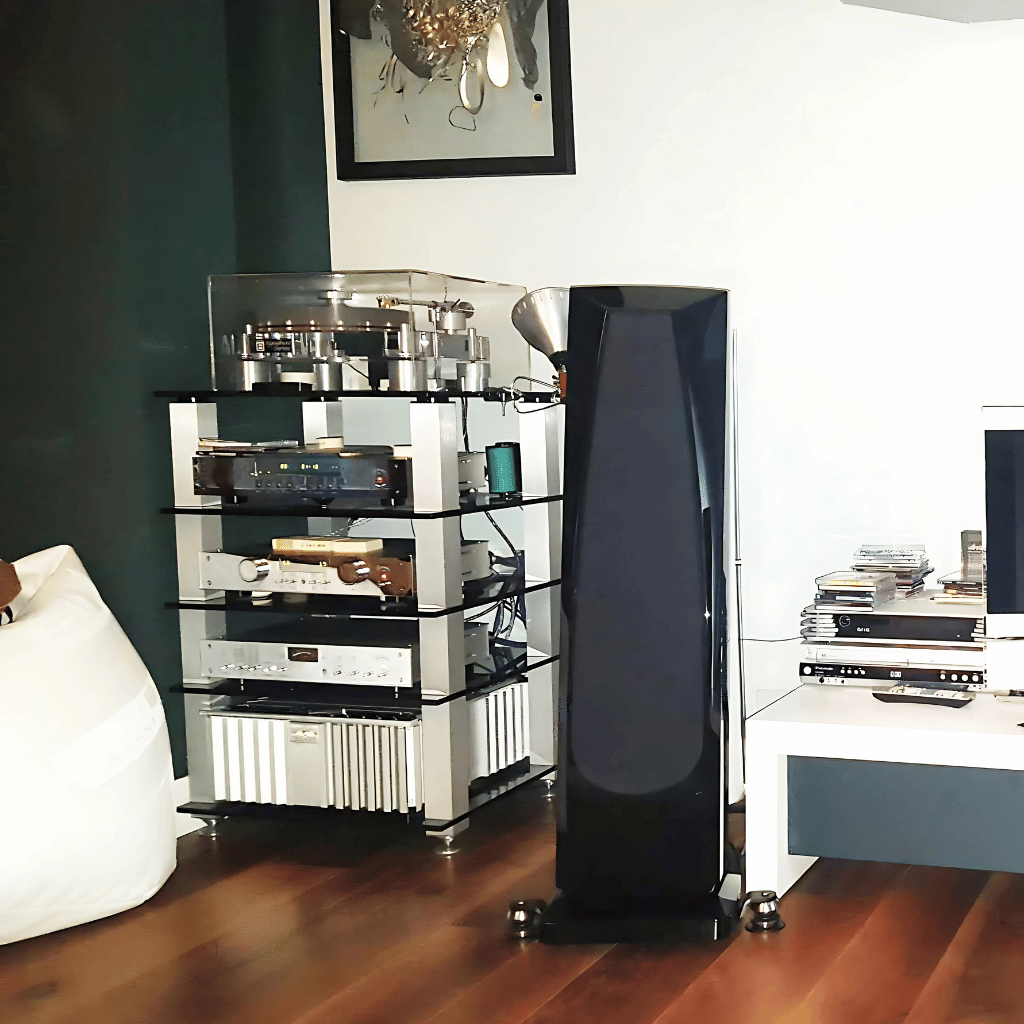

User Gallery
